System and GNSS-Receiver information

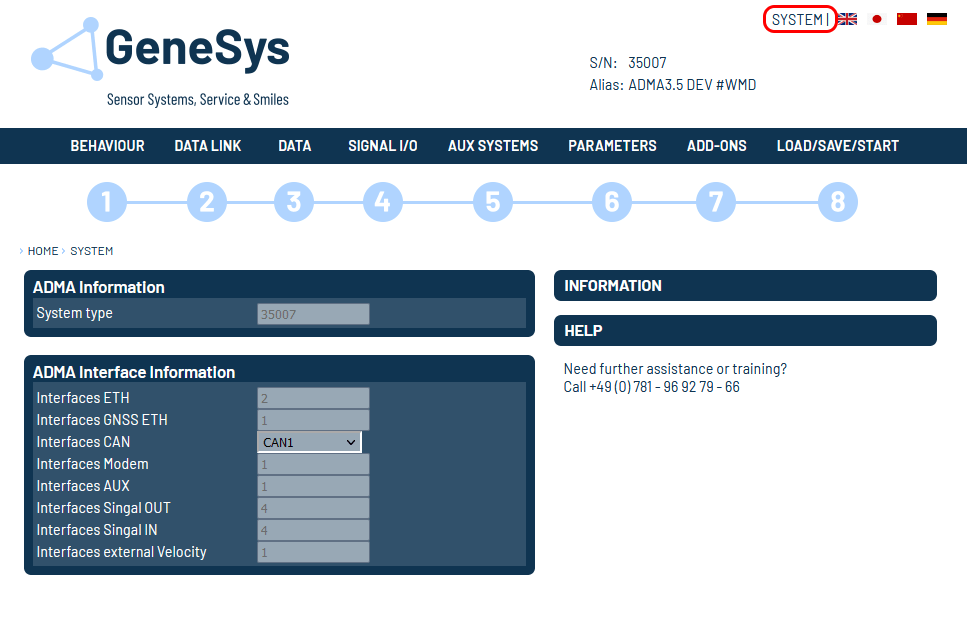

To get system information open the menu SYSTEM.

It delivers detailed information about the following system data:

ADMA Information

AliasUserdefined name of the ADMA system.
Calibration dateDate of the last system calibration. We recommend a calibration frequence of at least 2 years.
Calibration reminderThe ADMA web interface will display a clear hint when the specified time has passed since the last system calibration.
ADMA firmware versionWe recommend to always keep the ADMA firmware up to date because of new features, fixes and performance optimizations.

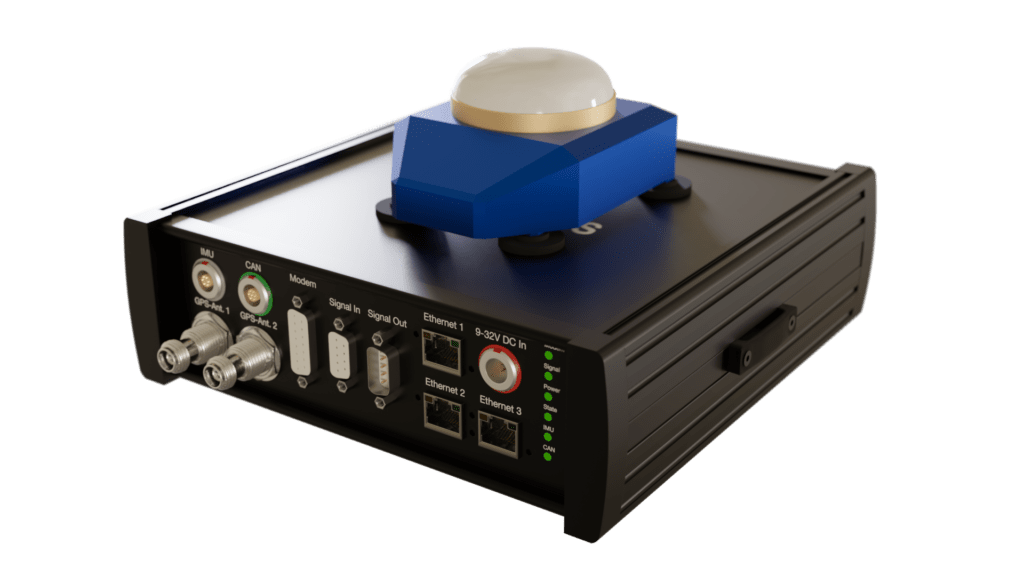

IMU coupled SNShows the IP address of the ADMA-Speed the calibration data of the IMU are relating to.

For the ADMA-Speed, it’s very important to connect the correct IMU because of the calibration data. The calibration data stored in the ADMA only get applied when the correct IMU is connected.

GNSS-Receiver Information

Firmware versionWe recommend to always keep the GNSS-Receiver firmware up to date because of performance optimizations.
ModelThe Model shows the currently enabled authorization code of the GNSS-Receiver. E.g. it contains information of how many satellite systems and if RTK is activated.


Reboot ADMASoft rebooting the ADMA system is particularly useful, especially when using it in Euro NCAP targets, as it allows for a targeted reset without affecting the entire system.
Reset ReceiverReset Receiver for FW update is needed for a legacy GNSS-Receiver FW update method.
File UploadIt is used for executing ADMA FW updates or for uploading a ADMA license file.

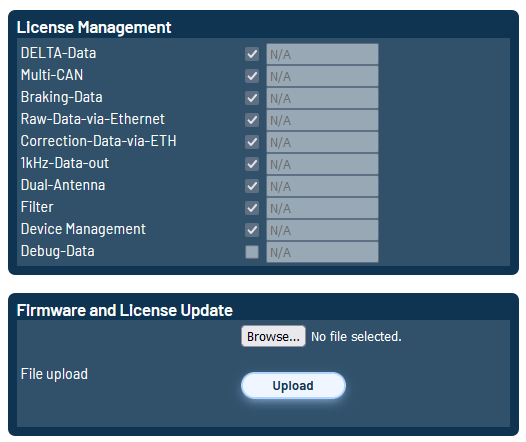

License Management

The License Management section displays various Add-On and Add-In Licenses. Each function allows users to request temporary license files at no cost, enabling them to thoroughly test the functionality before making a commitment.
