In addition to the ADMA firmware, the GNSS receiver firmware should also be kept up to date. Depending on the ADMA type the FW can be updated either via ETHERNET or via SERIAL interface.
Update via Ethernet 3 Interface
To update the internal GNSS-Receiver the following components are needed:
• Computer with a Ethernet Interface
• ADMA Power cable
• ADMA Ethernet cable
• Current GNSS-Receiver firmware (located in the ADMA Suite)
Note: A firmware update via Ethernet is only possible at ADMA-G systems. For ADMA-Slim and ADMA-Speed please refer to the section Update via Serial interface.
To access the GNSS-Receiver connect the provided ADMA Ethernet cable from your ADMA Ethernet 3 Interface to your PC and power up the ADMA.
Firmware Update
Connect the Ethernet Cable to the Ethernet 1 Interface and open up the ADMA Webinterface. Copy the GNSS-Receiver PSN.
• Open 192.168.88.30 in the web browser
• Go to the menu System at the upper right corner
• Copy the GNSS-Receiver PSN
Connect the Ethernet Cable to the Ethernet 3 Interface of the ADMA and open up the Webinterface of the Noavetel GNSS-Receiver. Head to Device with the PSN as password.
• Open 192.168.88.40 in the web browser
• Open Device and paste the PSN of the Receiver and Log in
Go to the menu Update, browse for the GNSS-Receiver firmware file (.shex) in the ADMA Suite and apply the update.
Warning: Do not disconnect the link between ADMA and computer or power supply during the Firmware Update!
When the Firmware Update is finished, power reset the ADMA to complete the Firmware Update.
To check the successful Firmware Update, connect to the ADMA Webinterface. Start Measurement and open the menu SYSTEM, GNSS receiver Information..
Update via Serial Interface
Wiring and Setup for Update via AUX Interface
To update the internal GNSS-Receiver the following components are needed:
• Computer with a serial interface or a USB to RS232 adapter
• ADMA Power cable
• ADMA Ethernet cable
• ADMA AUX cable
• Current GNSS-Receiver firmware and the Novatel Application Suite (located in the ADMA Suite)
Wiring
To access the GNSS-Receiver connect the provided ADMA AUX to SubD9-Cable with the serial interface of your computer.
Setup and Configuration

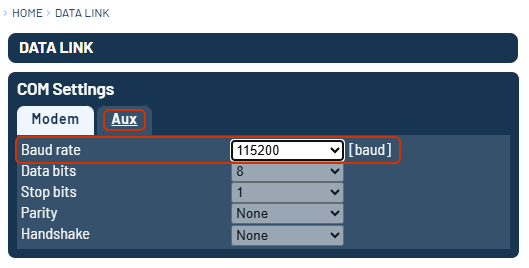

The following settings must be done via ADMA Webinterface:
• 1️⃣ BEHAVIOUR: Autostart off
Wiring and Setup for Update via MODEM Interface
To update the internal GNSS-Receiver the following components are needed:
• Computer with a serial interface or a USB to RS232 adapter
• ADMA Power cable
• ADMA Ethernet cable
• ADMA GNSS CFG cable
• Current GNSS-Receiver firmware and the Novatel Application Suite (located in the ADMA Suite)
Wiring
To access the GNSS-Receiver connect the provided ADMA Modem to SubD9-Cable with the serial interface of your computer.
Setup and Configuration
The following settings must be done via ADMA Webinterface:
• 1️⃣ BEHAVIOUR: Autostart off
• 5️⃣ AUX SYSTEM: DGNSS Preset User defined
Firmware Update
Unzip the firmware update files and start the Novatel Application Suite (Install the Software if not already available).
• Unzip
• Start Novatel Application Suite
Open Setup & Monitor.
Add Device.
Connect to the device.
• Type in a connection name
• Select Serial
• Select the COM Port of your PC. (If unknown, look it up in the windows device manager)
• Select Baud Rate Auto
• Add the Receiver
Open the connection.
Go to Device / Update.
Browse for the GNSS-Receiver Firmware file (.shex) and Apply the Update.
Warning: Do not disconnect the link between ADMA and computer or power supply during the Firmware Update!
When the Firmware Update is finished, power reset the ADMA to complete the Firmware Update.
To check the successful Firmware Update, connect to the ADMA Webinterface. Start Measurement and open the menu SYSTEM, GNSS receiver Information.
