Connecting multiple instruments

WiFi is a standard for data

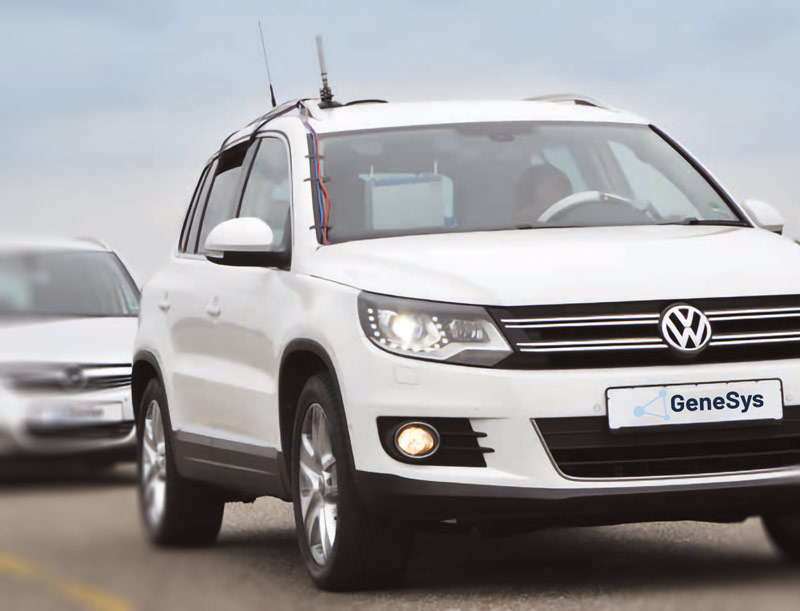

WiFi is a standard for data transmission from vehicle to vehicle or from a vehicle to a remote control station. It provides high bandwidth and good reliability at an affordable cost. Based on industrial type high power dual band WiFi router, the typical range of our WiFi-Kits is 500m to 1000m, depending on the data throughput. Pre-configured to run either as an access point or a client.The antenna is directly connected to the router.

Technical data and properties

  • Waterproof and temperature resistent (-40°C to 70°C tested)
  • Magnetic base and side window clamp for antenna mounting
  • Omni dual band antenna | PoE in
  • Ethernet Port 1 x 10/100/1000 Mbit | Wireless 5 GHz / 2.4 GHz
  • Protocols 802.11 ac / 802.11 b/g/n
  • Input voltage 10 – 30 VDC | Power consumption 11 W max.
  • Outpower 1300 mW max. | Antenna gain 8 dBi / 6 dBi
