Mechanical Dimensions – Antennas

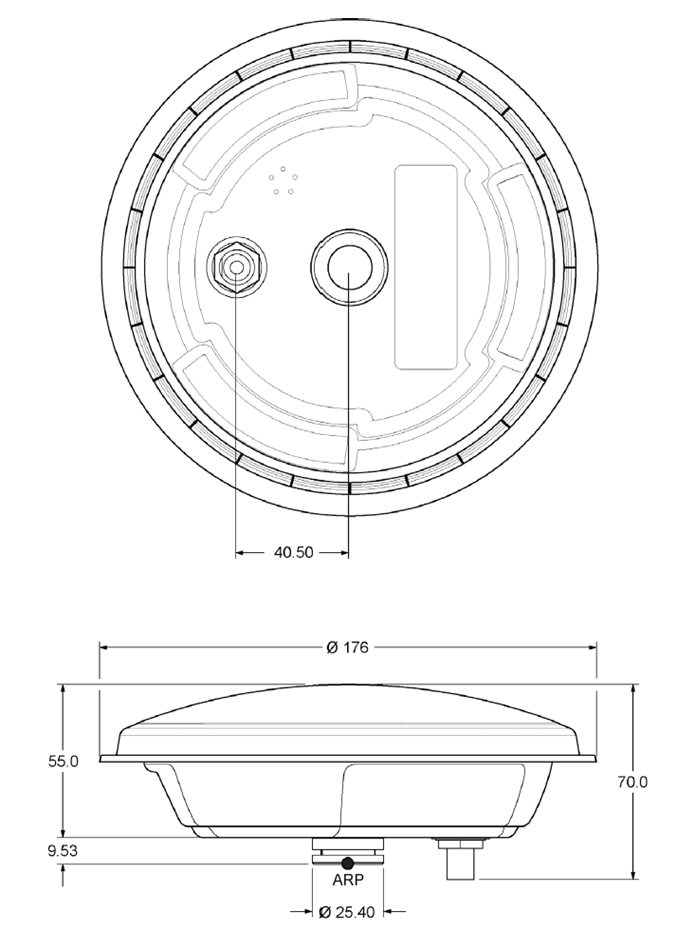

GNSS Antenna 70x Series#

The following table shows typical absolute offset numbers to the phase center of the GNSS-70x series antennas refer to ARP.

ABSOLUTE HEIGHT
L166 m
L263 mm
Avg.65 mm

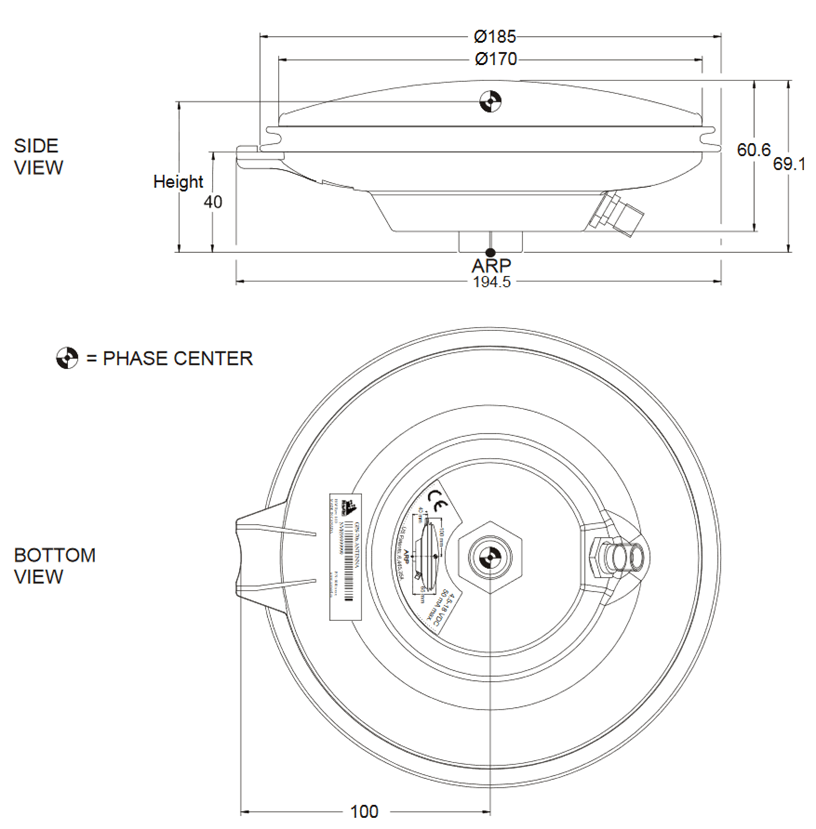

GNSS Antenna 800 Series#

The following table shows typical absolute offset numbers to the phase center of the GNSS-800 series antennas refer to ARP.

ABSOLUTE HEIGHT
L151.7 mm
L252.0 mm
Avg.51.9 mm

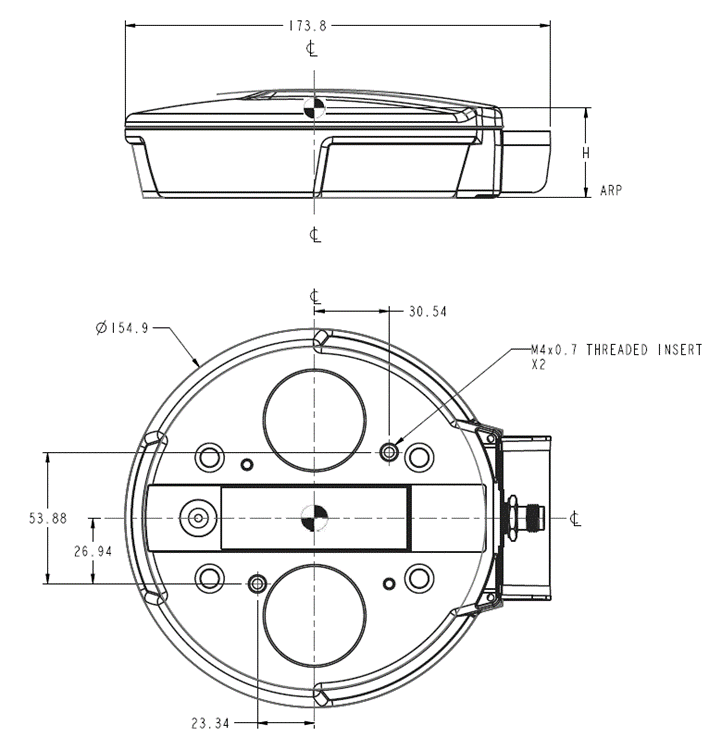

GNSS Antenna 50x Series#

The following table shows typical absolute offset numbers to the phase center of the GNSS-50x series antennas refer to ARP.

ABSOLUTE HEIGHT
L131.5 mm
L240.2 mm
Avg.35.9 mm

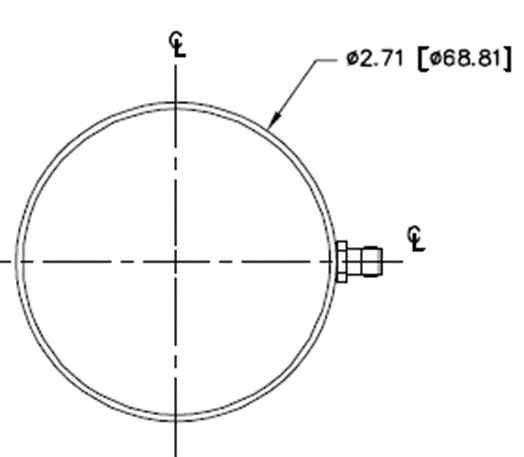

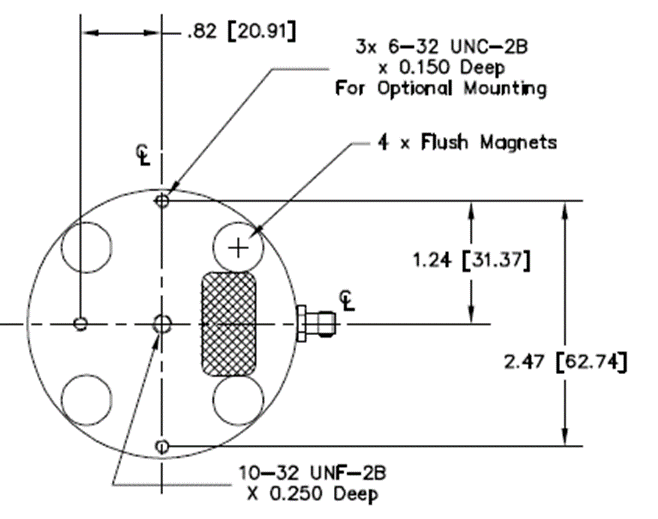

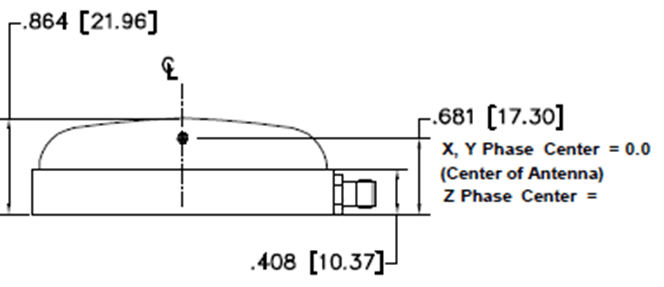

GNSS Antenna G5Ant#
