Ethernet Logger Addon Braking Setup


Saving Options#

Add-On Braking Table Saving Options#

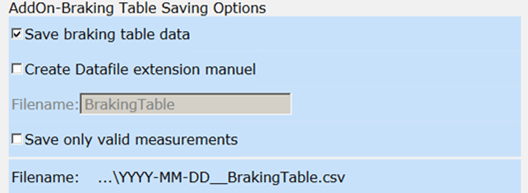

In this option you can choose if you want to save the braking results in an *.csv data file.
You can also set a special filename if you want. The standard filename will be BrakingTable.
You can also choose, if you only want to save the valid measurements.
On the bottom of this options you will find an example of the filenames.

Add-On Braking splitted ASCII Saving Options#

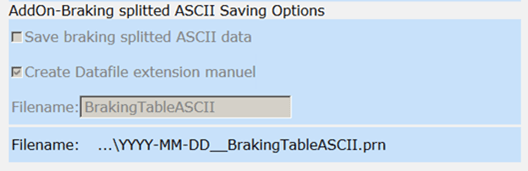

With this option you can save the braking ASCII data splitted for every braking event.
You can also set a special filename if you want. The standard filename will be BrakingTableASCII.

On the bottom of this options you will find an example of the filenames.

Add-On Braking Setup#

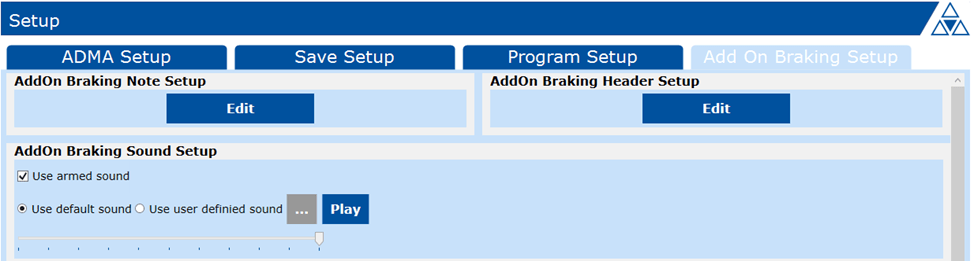

In the addon braking setup the texts are edited, which can be added to single braking or to a whole braking campaign. Furthermore, you can set the sounds that should be played during different braking events.

Add-On Braking Header / Note Setup#

When the edit button is pressed, the header or note editor opens:

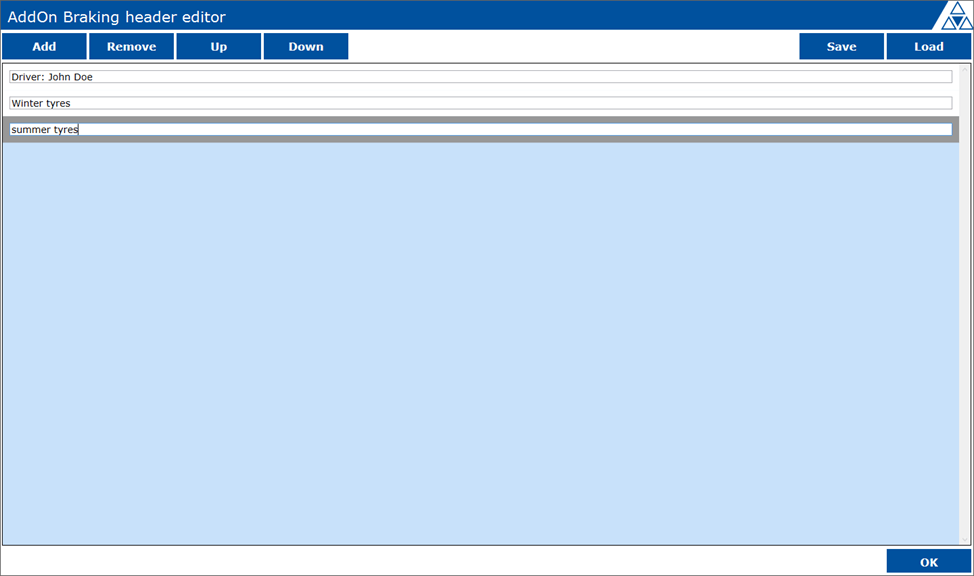

The text that is currently being edited is highlighted in dark grey. The position of the marked text can be changed with the up and down buttons. Also, a text can be added or removed with add and remove buttons. This setup can also be saved. At program start the last opened setup file is loaded.

AddOn Braking Sound Setup#

A sound can be played for the following events:

  1. Armed
  2. Armed abort
  3. Braking success
  4. Braking failed
  5. Velocity threshold 1
  6. Velocity threshold 2

The checkbox can be used to select whether the corresponding sound is to be played or not.

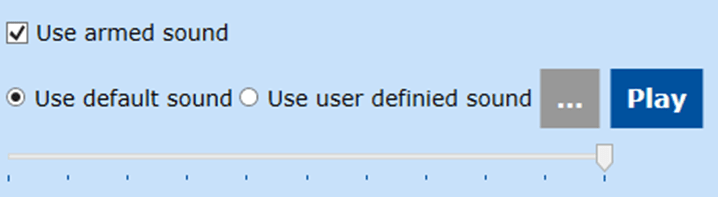

With the radio buttons you can choose between the standard sound and your own wav file. The "…" button is used to load your own file. The volume can be adjusted with the slide control.
With the “play” button these settings can be checked.
