The data format RAWDATA allows you to output GNSS raw data for a later postprocessing via GeneSys ADMA-PP Software.
The components listed next are needed:
• Adapter cable Sub-D15 to Sub-D9
• GeneSys RAW Data xLogger Software
• RTK Converter Software (RTKCONV)
• Computer with serial interface
Preparing the GNSS Base Station#
- Disconnect the Radio Modem
- Connect an adapter cable Sub-D15 to Sub-D9
- Connect you PC serial interface to the Sub-D9
| Connector Sub-D15 female Connector Pin-No. | Connector Sub-D9 female Connector Pin-No. | Description |
|---|---|---|
| 1 | - | nc |
| 2 | - | nc |
| 3 | - | nc |
| 4 | - | nc |
| 5 | - | nc |
| 6 | - | nc |
| 7 | - | nc |
| 8 | 5 | GND |
| 9 | 3 | TxD |
| 10 | - | nc |
| 11 | 2 | RxD |
| 12 | - | nc |
| 13 | - | nc |
| 14 | - | nc |
| 15 | - | nc |
Data logging#
1. Power up the GNSS Base Station
2. Change the correction format to RAWDATA
3. Fix the desired position

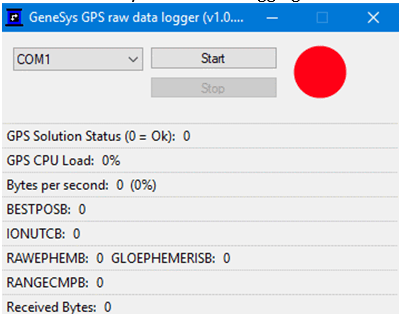

4. Start the GeneSys RAW Data Logging Software and select the desired COM port.

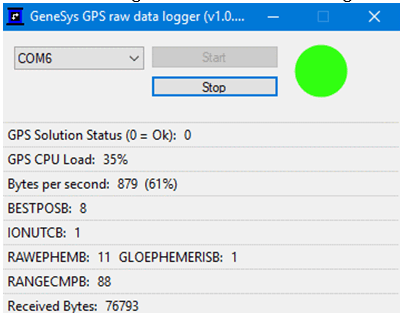

5. Wait until the signal switches from red to green.
6. Now you can start the measurement.
7. After completing your test drive, terminate the raw data recording by pressing the stop button.
Convert RAW to observer data#

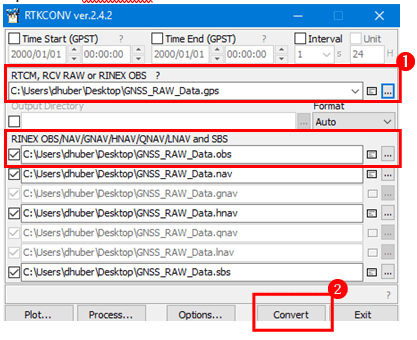

1. Open the RTKconv Software
2. Select your RAW date file *.gps (❶)
3. Convert it to an observer file *.obs (❷)
The observer (*.obs) date can now be supplied to ADMA-PP.
